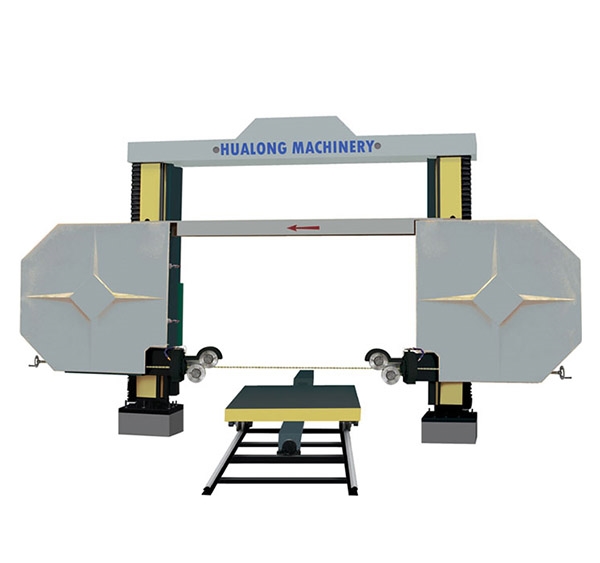

HLSJ-2000 adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.
1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.
2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.
3) Diverse, complex, 2-dimensional surfaces can be processed
4) Cutting speed is adjustable according to different requirements.
5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.
名稱 | Name | 單位Unit | HLSJ-1500 | HLSJ-1800 | HLSJ-2200 |
最大加工 尺寸 | Nax processing dimensions | mm | 3000*2000*1500 | 3600*2000*1800 | 4000*2000*2100 |
串珠繩長度 | String bead wire length | mm | 16500 | 19300 | 21350 |
串珠繩直徑 | String bead wire dianeter | mm | Φ8-Φ10 | Φ8-Φ10 | Φ8-Φ10 |
切割線速度 | Cutting wire speed | m/s | 0-40 | 0-40 | 0-40 |
總功率 | Gross power | kw | 19.38 | 19.38 | 19.38 |
耗水量 | Water consumption | m³/h | 2 | 2 | 2 |
外形尺寸 | Dinensions(L*W*H) | mm | 7500*6000*380 | 8800*6800*4800 | 9800*7000*5200 |
重量 | Gross weight | kg | 7000 | 10500 | 14000 |
溫馨提示:如果想了解更多細節,規格、標準、價格和解決方案,請聯係我們。
